PCBs Overview
Items needed for the build

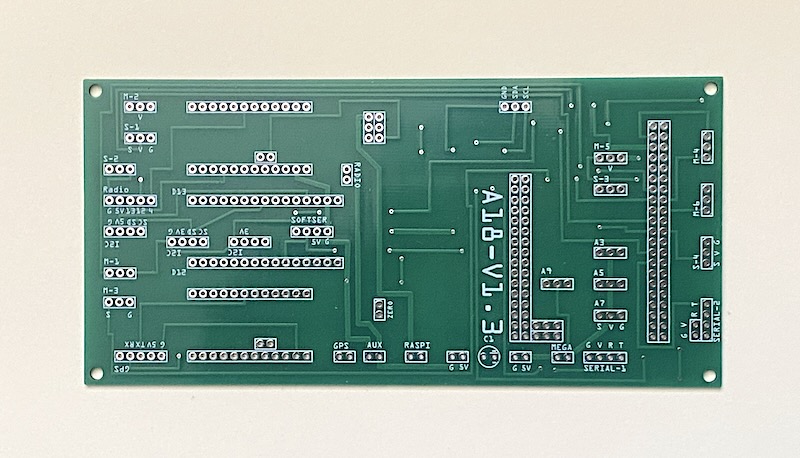

- A18 main board pcb
- Hrebinek
- Hrebinek female

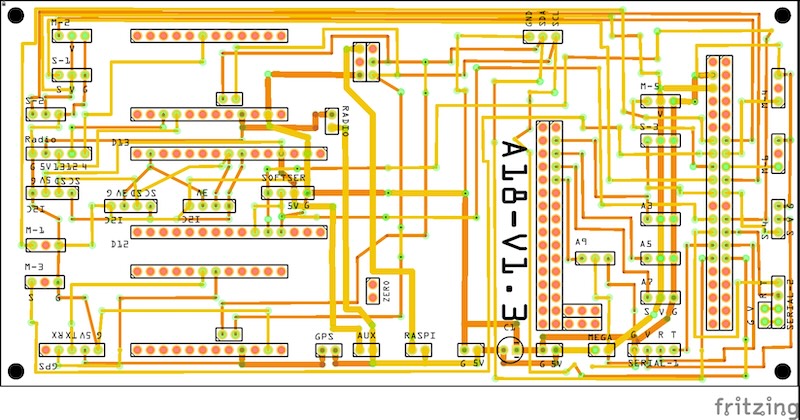

Gerber file
You can order from JLCPCB for less than 5 USD (5 pieces) or on plenty of other sites.
GERBER FILE DOWNLOAD
This part is available only in the builder's membership section.
Buy builder's membership here.
Single Row Straight MALE PIN HEADER
BUY FROM ALIEXPRESS
Single Row Straight MALE PIN HEADER. Tracked, affiliate link.
Single Row Straight FEMALE PIN HEADER
- Arduino Pro Mini: 12pin, 4 pcs
- Arduino Nano: 15pin, 2 pcs
- Raspberry Pi Zero: 2pin, 1 pcs
BUY FROM ALIEXPRESS
Single Row Straight FEMALE PIN HEADER. Tracked, affiliate link.
Double Row Straight FEMALE PIN HEADER
- Arduino MEGA Mini: 2x21pin, 1 pcs and 2x16pin, 1pcs
- Raspberry Pi Zero: 2x3pin, 1pcs
BUY FROM ALIEXPRESS
DOUBLE Row Straight FEMALE PIN HEADER. Tracked, affiliate link.
Jumpers
Are needed for the PCB to temporarily isolate each Arduino board from each other. Typically when upload of new firmware is needed.
At least 6 pcs for one PCB needed.
BUY FROM ALIEXPRESS
2.54mm Header Jumper. Tracked, affiliate link.
CONSIDER ORDER TOGETHER
If you want to order PCBs from JLCPCB or another producer, these parts can be ordered at once.
